Home Set Screws Socket Set Screw With Cone Point M5 x 12mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914

M5 x 12mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914

Screw
Screw
Part No. HCSM512S rohs Rating:

material SUS304 Stainless Steel
Ship Date 2026-12-11
Thread M5
Length 12 mm
Unit Price USD$ 0.017 /pcs
Unit Weight 1.272 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Item Information

Why Choose HCSM512S?

HCSM512S is a M5 head Socket drive screw with 12 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as HCSM512B (Black Steel), HCSM512G (12.9 Grade Steel), THCSM512S (SUS304 Stainless Steel), THCSM512Z (Blue Zinc Plated Steel), THCSM512B (Black Zinc Plated Steel), the SUS304 Stainless Steel of HCSM512S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The head design ensures optimal load distribution across the mating surface, while the Socket drive allows efficient torque transmission during installation. Each HCSM512S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

M5 x 12mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914
HCSM512S This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is with Socket drive, M5 Thread and 12 mm Length .
material SUS304 Stainless Steel, Finsh is Rohs Chromate which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY HCSM512S - M5 x 12mm Socket Set Screw Cone Point - 304 Stainless Steel for Precision Instruments | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M5 x 12 mm
M5 x 12 mm
HCSM512S
SUS304 Stainless Steel
M5 x 12 mm
M5 x 12 mm
HCSM512B
Black Steel
M5 x 12 mm
M5 x 12 mm
HCSM512G
12.9 Grade Steel
M5 x 12 mm
M5 x 12 mm
THCSM512S
SUS304 Stainless Steel
M5 x 12 mm
M5 x 12 mm
THCSM512Z
Blue Zinc Plated Steel
M5 x 12 mm
M5 x 12 mm
THCSM512B
Black Zinc Plated Steel

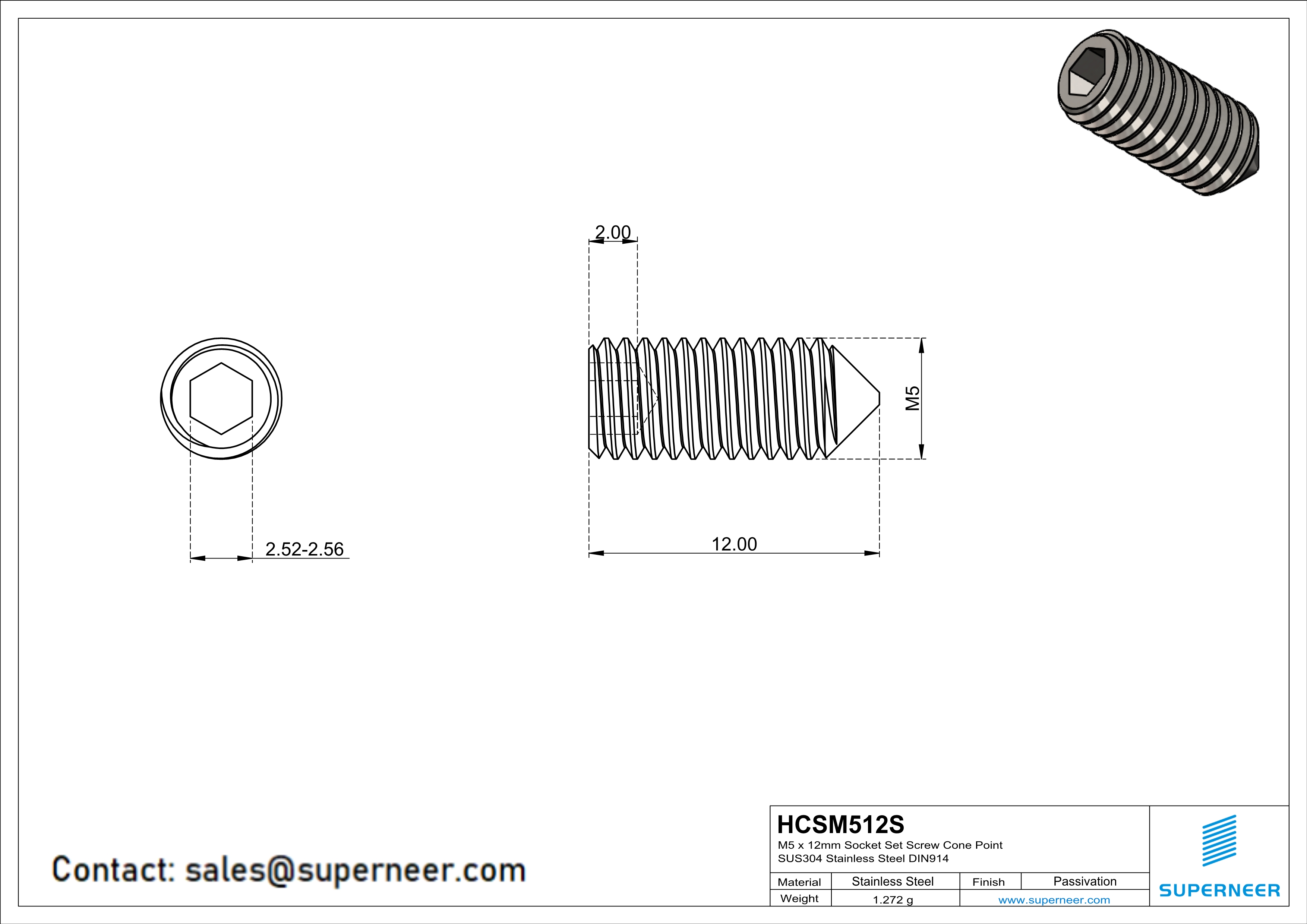

Item Drawing
M5 x 12mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914
HCSM512S Screw 1
HCSM512S Screw 2
HCSM512S Screw 3
HCSM512S Screw 4
HCSM512S Screw 5
HCSM512S Screw 6
Material report
Stock Part
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about HCSM512S

What is HCSM512S screw?

HCSM512S is a M5 head Socket drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 12 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of HCSM512S?

The HCSM512S screw features thread size M5, length of 12 mm, head type (head diameter N/A mm), drive type Socket (drive size N/A), and is made of SUS304 Stainless Steel.

What material is the HCSM512S screw made of?

The HCSM512S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of HCSM512S?

The HCSM512S screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.

What are HCSM512S screws used for?

HCSM512S head Socket drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with head aesthetics is required.

What is the MOQ and price for HCSM512S?

The minimum order quantity (MOQ) for HCSM512S is 10,000 pieces. The unit price is $0.017 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for HCSM512S?

The lead time for HCSM512S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the inch equivalent of M5 thread?

The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

What head type does HCSM512S use and why?

The HCSM512S uses a head type. head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For HCSM512S (M5, 12 mm), ensure your application requires this specific size.

What is the difference between HCSM512S and similar parts?

HCSM512S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include HCSM512B (Black Steel), HCSM512G (12.9 Grade Steel), THCSM512S (SUS304 Stainless Steel), THCSM512Z (Blue Zinc Plated Steel), THCSM512B (Black Zinc Plated Steel). The SUS304 Stainless Steel of HCSM512S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes HCSM512S the preferred choice when these properties align with your application requirements.

Send Enquiry

Have questions about HCSM512S? Send us your enquiry and we'll reply within 48 hours.
