Home Sems Screws Sems Screw With Split Washer Phillips Sems Bolt M2 x 7mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black

M2 x 7mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black

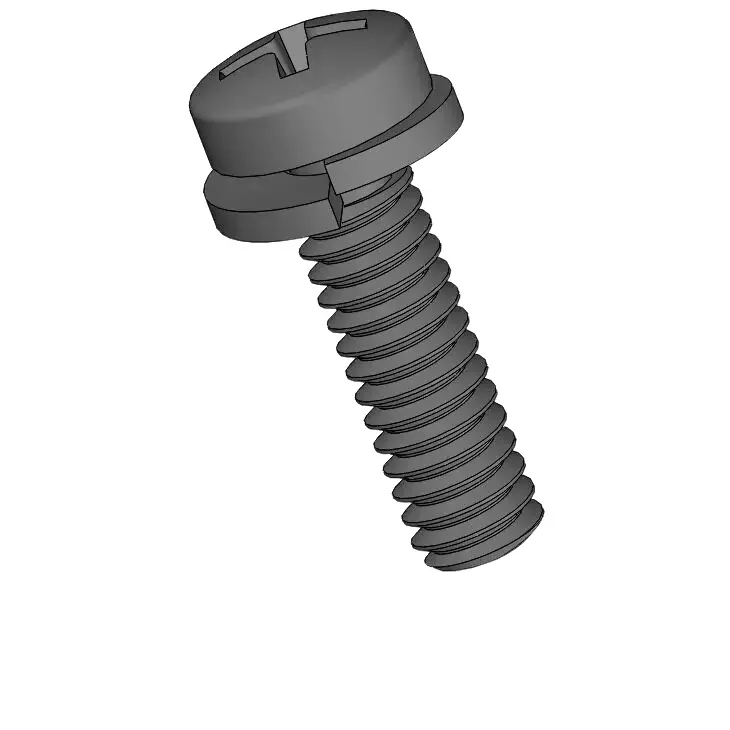

screw pic
screw pic
Part No. ERPPM207B rohs Rating:

Material Black Zinc Plated Steel
Ship Date 2026-11-07
Head Pan Head
Drive Phillips   PH No.1
Head Diameter 3.1-3.5 mm
Head Height 1.2-1.4 mm
Thread M2
Length 7 mm
Unit Price USD$ 0.020 /pcs
Unit Weight 0.246 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M2 x 5mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black M2 x 5mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
M2 x 6mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black M2 x 6mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
M2 x 7mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black M2 x 7mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
M2 x 8mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black M2 x 8mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
M2 x 9mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black M2 x 9mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
M2 x 10mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black M2 x 10mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
M2 x 12mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black M2 x 12mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
Item Information
M2 x 7mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Phillips drive, M2 Thread and 7 mm Length .
Material Black Zinc Plated Steel, Finsh is Rohs Black which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
Buy Black zinc plated steel pan head phillips screw with m2 and 7 length manufactured by Superneer,this m2 x 7mm pan head phillips sems screws with spring washer steel black features 3.1-3.5 head diameter and 1.2-1.4 head height.Suitable for fastening materials.Available in black finish today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M2 x 7 mm
M2 x 7 mm
ERPPM207S
SUS304 Stainless Steel
M2 x 7 mm
M2 x 7 mm
ERPPM207Z
Blue Zinc Plated Steel
M2 x 7 mm
M2 x 7 mm
ERPPM207B
Black Zinc Plated Steel

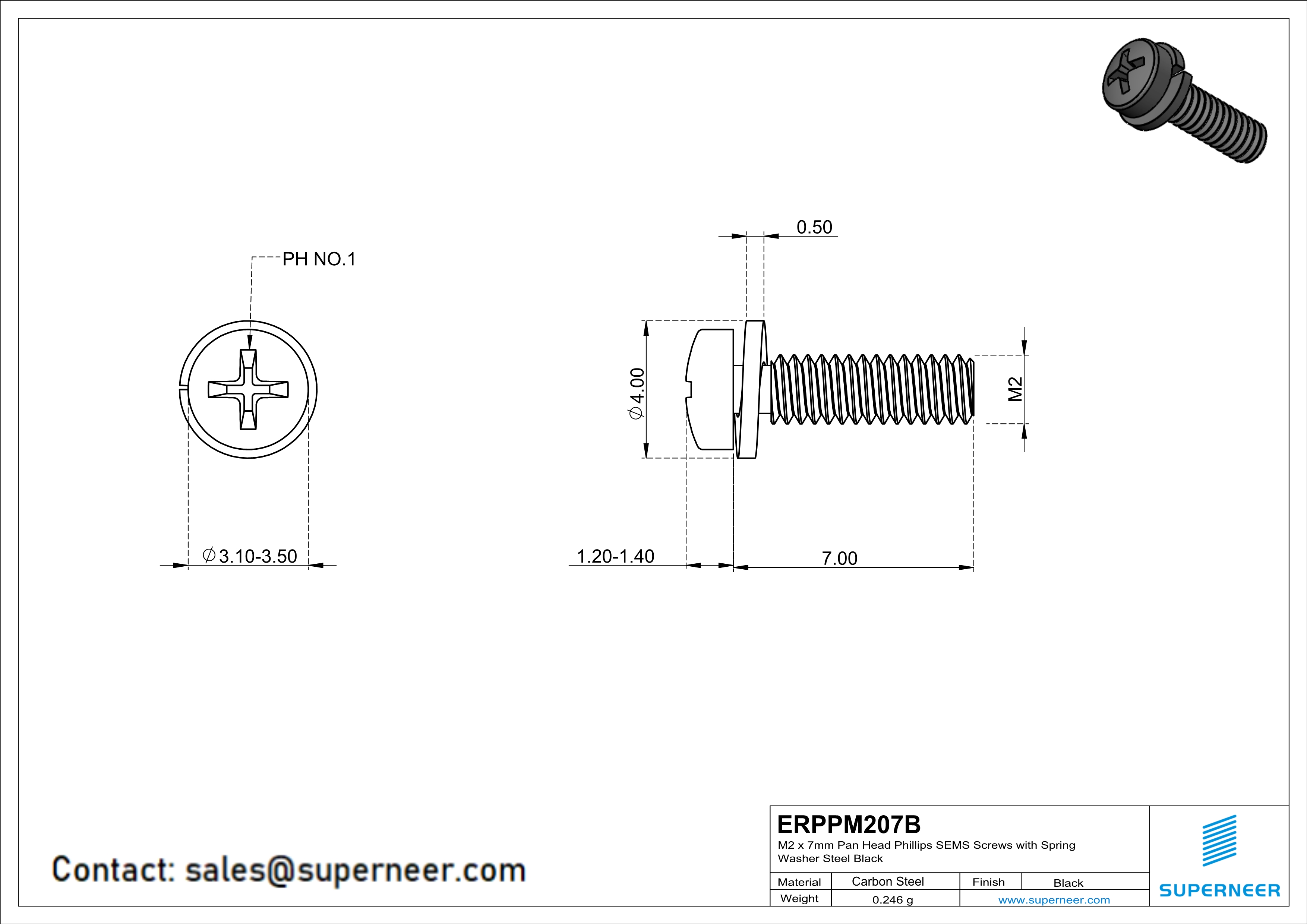

Item Drawing
M2 x 7mm Pan Head Phillips SEMS Screws with Spring Washer Steel Black
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about ERPPM207B

What is ERPPM207B screw?

ERPPM207B is a M2 Pan Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 7 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of ERPPM207B?

The ERPPM207B screw features thread size M2, length of 7 mm, head type Pan Head (head diameter 3.1-3.5 mm), drive type Phillips (drive size PH No.1), and is made of Black Zinc Plated Steel.

What material is the ERPPM207B screw made of?

The ERPPM207B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of ERPPM207B?

The ERPPM207B screw has a M2 thread. This is a metric thread with M2 specification, commonly used in international applications following ISO standards.

What are ERPPM207B screws used for?

ERPPM207B Pan Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

What is the MOQ and price for ERPPM207B?

The minimum order quantity (MOQ) for ERPPM207B is 10,000 pieces. The unit price is $0.020 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact sales@superneer.com for custom quotes.

What is the lead time and shipping for ERPPM207B?

The lead time for ERPPM207B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the inch equivalent of M2 thread?

The M2 thread is approximately equivalent to #3 (approx 2-56). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

What head type does ERPPM207B use and why?

The ERPPM207B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For ERPPM207B (M2, 7 mm), ensure your application requires this specific size.
