M3 x 6mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated

Screw
Screw
Part No. EFPTM306Z rohs Rating:

material Blue Zinc Plated Steel
Ship Date 2026-11-20
Head Pan Head
drive Torx   T10
Head Diameter 5.3-5.6 mm
Head Height 2.26-2.40 mm
Thread M3
Length 6 mm
Unit Price USD$ 0.019 /pcs
Unit Weight 0.754 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
M3 x 5mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated M3 x 5mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
M3 x 6mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated M3 x 6mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
M3 x 7mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated M3 x 7mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
M3 x 8mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated M3 x 8mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
M3 x 9mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated M3 x 9mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
M3 x 10mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated M3 x 10mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
M3 x 12mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated M3 x 12mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
Item Information

Why Choose EFPTM306Z?

EFPTM306Z is a M3 Pan Head head Torx drive screw with 6 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as EFPTM306S (SUS304 Stainless Steel), EFPTM306B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of EFPTM306Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each EFPTM306Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

M3 x 6mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
EFPTM306Z This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Pan Head with Torx drive, M3 Thread and 6 mm Length .
material Blue Zinc Plated Steel, Finsh is Rohs Blue Zinc which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:[email protected]. when payment made, We will soon make production and update process for you via email.
BUY EFPTM306Z - M3 x 6mm Pan Head Torx SEMS Screws with Flat Washer - Blue Zinc Steel for PCB Mounting | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
M3 x 6 mm
M3 x 6 mm
EFPTM306S
SUS304 Stainless Steel
M3 x 6 mm
M3 x 6 mm
EFPTM306Z
Blue Zinc Plated Steel
M3 x 6 mm
M3 x 6 mm
EFPTM306B
Black Zinc Plated Steel

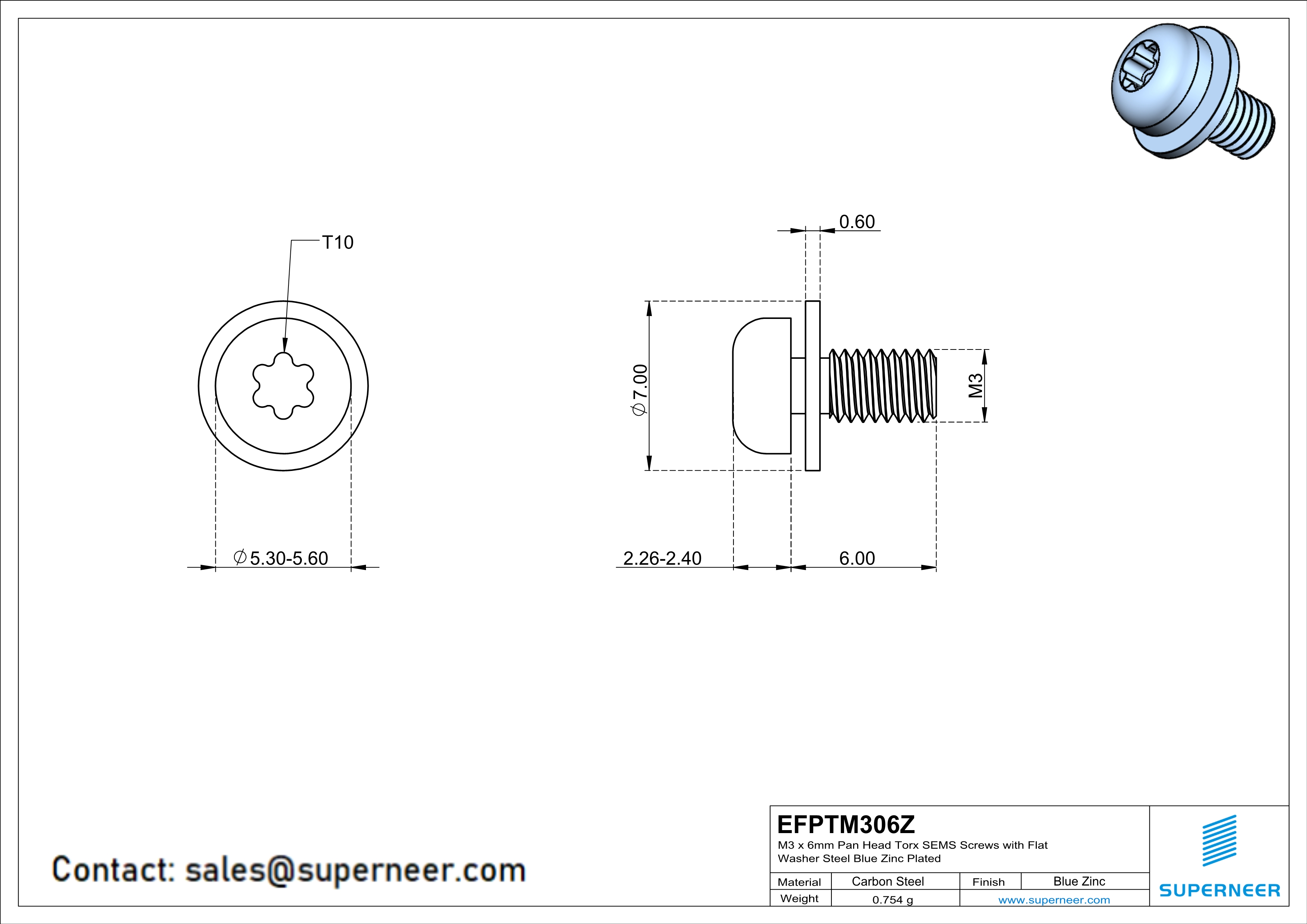

Item Drawing
M3 x 6mm Pan Head Torx SEMS Screws with Flat Washer Steel Blue Zinc Plated
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about EFPTM306Z

What is EFPTM306Z screw?

EFPTM306Z is a M3 Pan Head head Torx drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 6 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of EFPTM306Z?

The EFPTM306Z screw features thread size M3, length of 6 mm, head type Pan Head (head diameter 5.3-5.6 mm), drive type Torx (drive size T10), and is made of Blue Zinc Plated Steel.

What material is the EFPTM306Z screw made of?

The EFPTM306Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of EFPTM306Z?

The EFPTM306Z screw has a M3 thread. This is a metric thread with M3 specification, commonly used in international applications following ISO standards.

What are EFPTM306Z screws used for?

EFPTM306Z Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

What is the MOQ and price for EFPTM306Z?

The minimum order quantity (MOQ) for EFPTM306Z is 10,000 pieces. The unit price is $0.019 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

What is the lead time and shipping for EFPTM306Z?

The lead time for EFPTM306Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What is the inch equivalent of M3 thread?

The M3 thread is approximately equivalent to #6 (approx 6-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

What head type does EFPTM306Z use and why?

The EFPTM306Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EFPTM306Z (M3, 6 mm), ensure your application requires this specific size.

What is the difference between EFPTM306Z and similar parts?

EFPTM306Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include EFPTM306S (SUS304 Stainless Steel), EFPTM306B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of EFPTM306Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes EFPTM306Z the preferred choice when these properties align with your application requirements.
