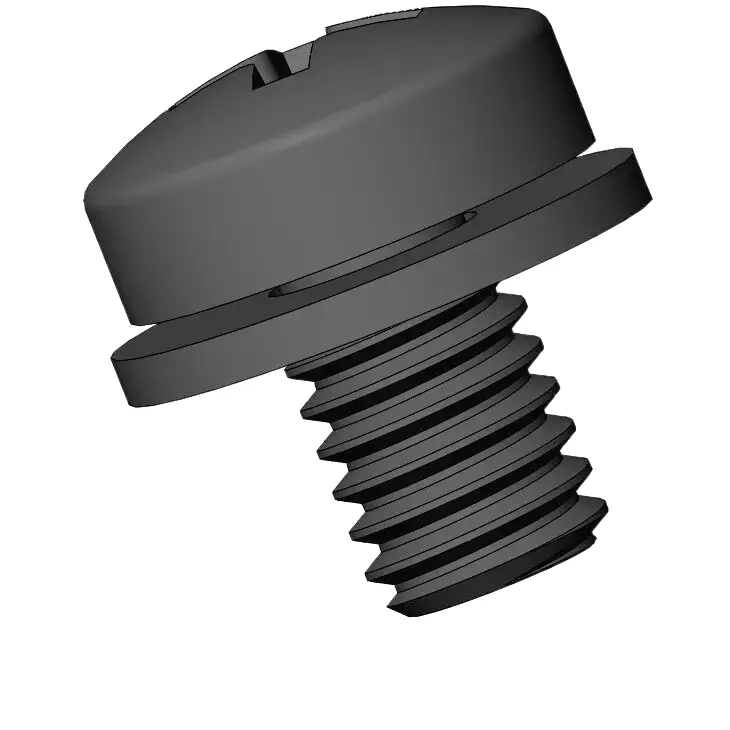

M4 x 6mm Pan Head Phillips SEMS Screws with Flat Washer Steel Black

EFPPM406B is a M4 Pan Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 6 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

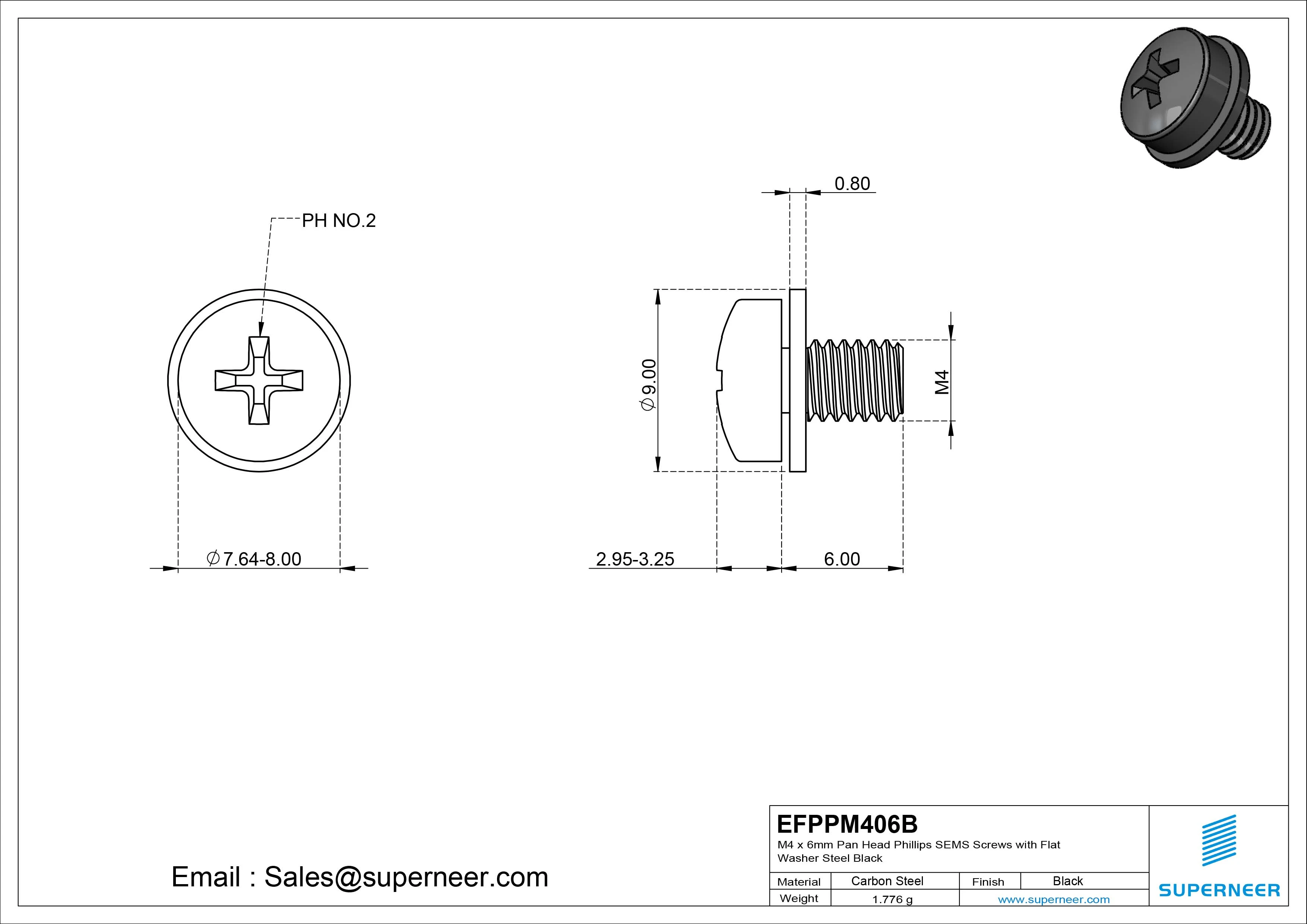

The EFPPM406B screw features thread size M4, length of 6 mm, head type Pan Head (head diameter 7.64-8.00 mm), drive type Phillips (drive size PH No.2), and is made of Black Zinc Plated Steel.

The EFPPM406B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

The EFPPM406B screw has a M4 thread. This is a metric thread with M4 specification, commonly used in international applications following ISO standards.

EFPPM406B Pan Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.

The minimum order quantity (MOQ) for EFPPM406B is 10,000 pieces. The unit price is $0.024 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.

The lead time for EFPPM406B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

The M4 thread is approximately equivalent to #8 (approx 8-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.

The EFPPM406B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EFPPM406B (M4, 6 mm), ensure your application requires this specific size.

EFPPM406B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include EFPPM406S (SUS304 Stainless Steel), EFPPM406Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of EFPPM406B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes EFPPM406B the preferred choice when these properties align with your application requirements.
