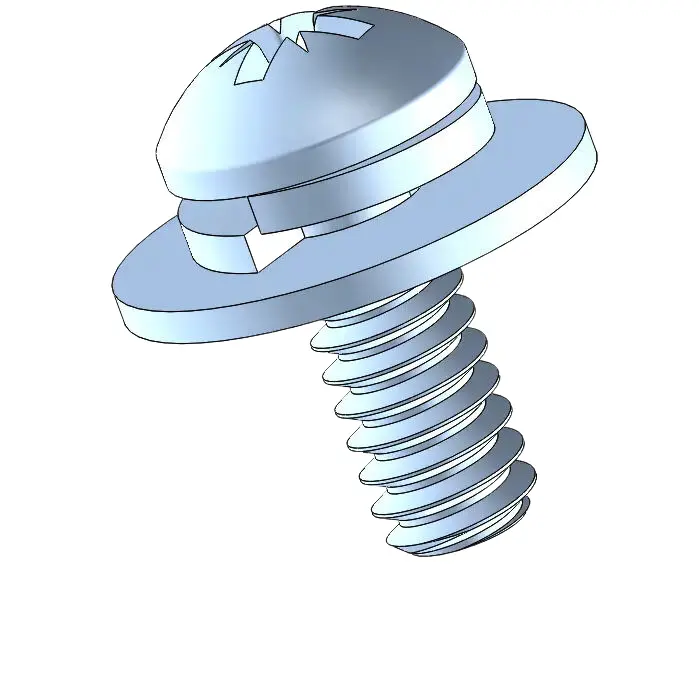

10-32 x 1/2" Pan Head Pozi SEMS Screws with Spring and Flat Washer Steel Blue Zinc Plated
Why Choose EDPZ1008Z?
EDPZ1008Z is a 10-32 Pan Head head Torx drive screw with 1/2 inches length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as EDPZ1008S (SUS304 Stainless Steel), EDPZ1008B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of EDPZ1008Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each EDPZ1008Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about EDPZ1008Z
What is EDPZ1008Z screw?
EDPZ1008Z is a 10-32 Pan Head head Torx drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 1/2 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of EDPZ1008Z?

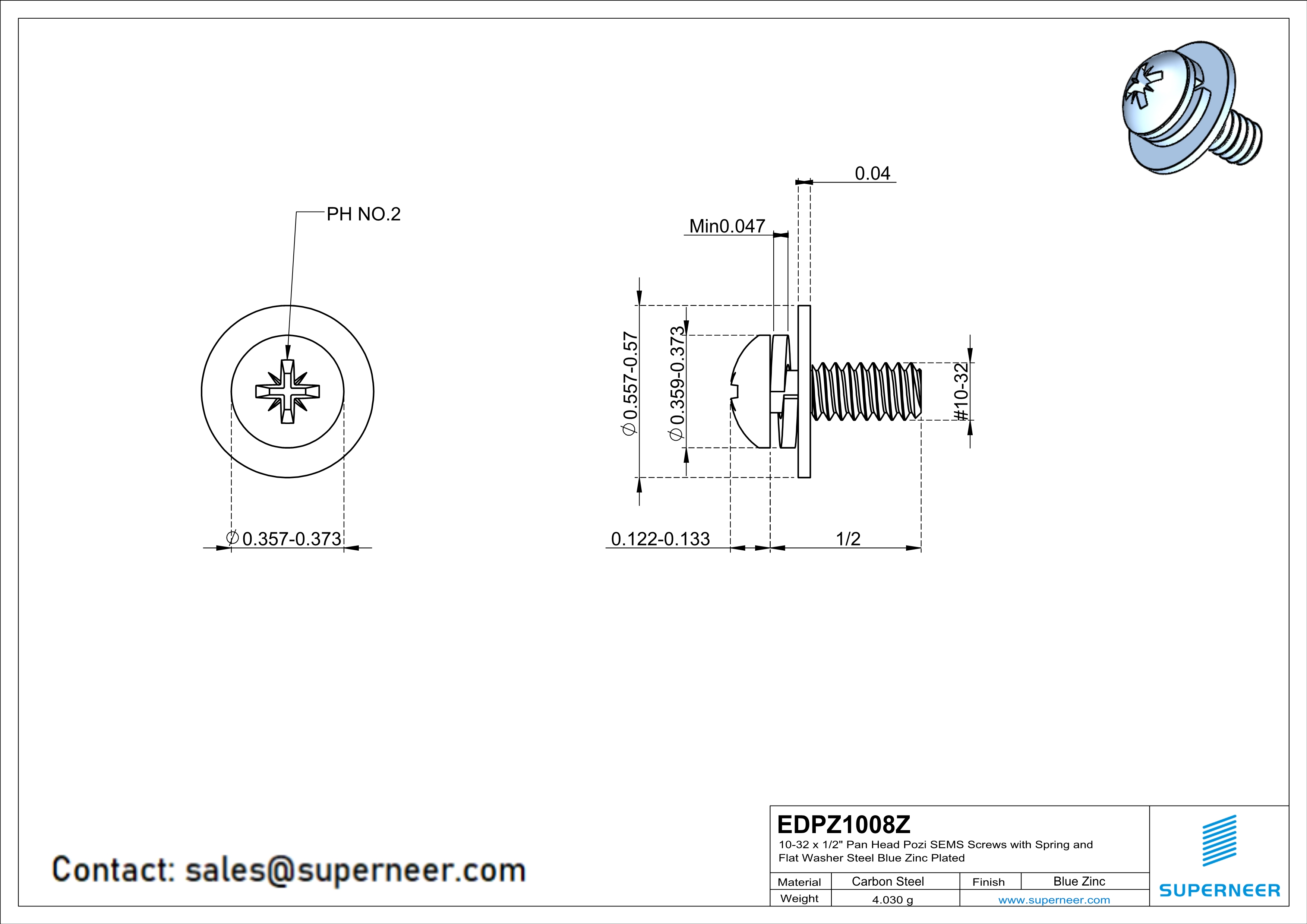

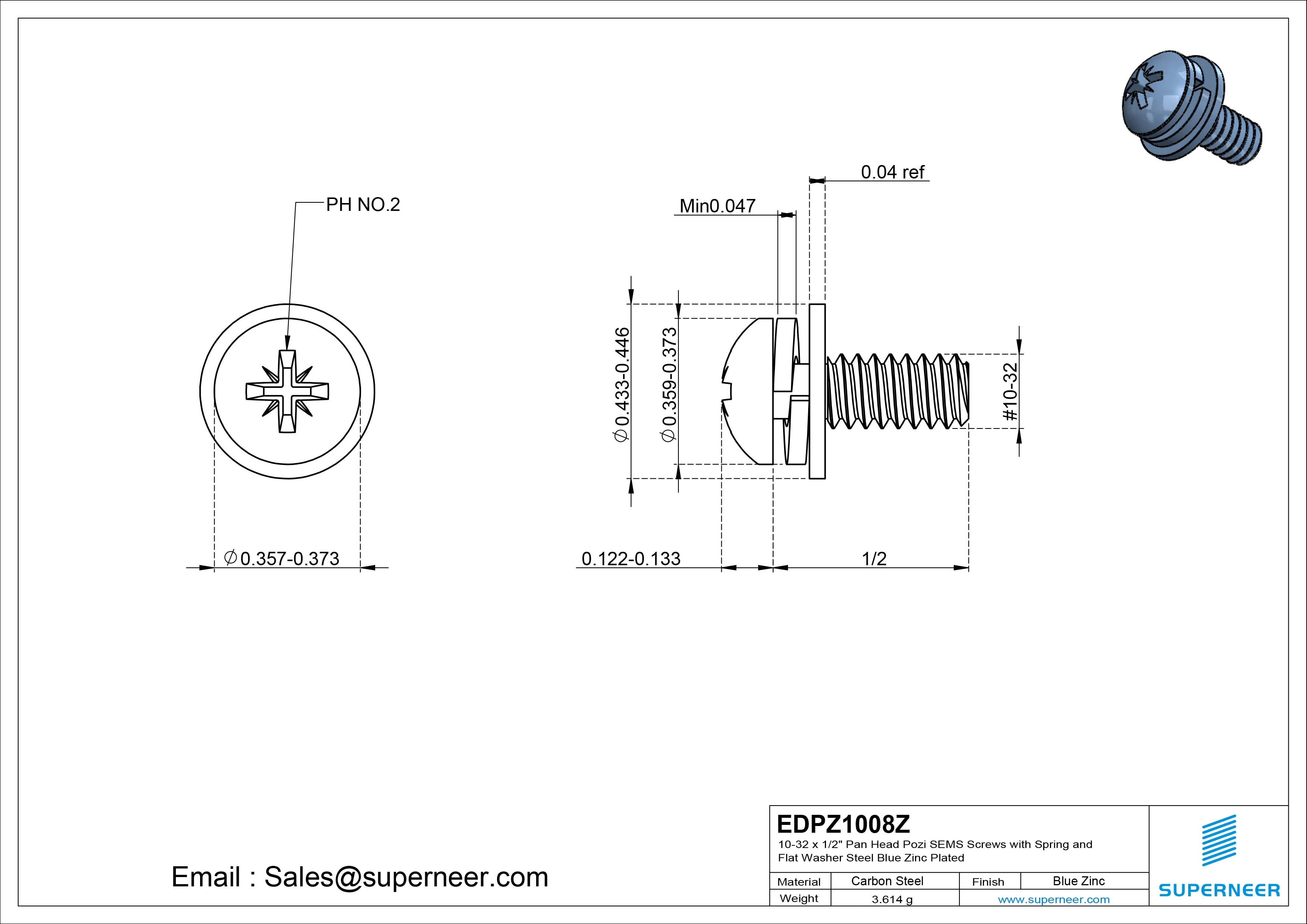

The EDPZ1008Z screw features thread size 10-32, length of 1/2 inches, head type Pan Head (head diameter 0.373-0.357” inches), drive type Torx (drive size PH No.2), and is made of Blue Zinc Plated Steel.
What material is the EDPZ1008Z screw made of?
The EDPZ1008Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of EDPZ1008Z?
The EDPZ1008Z screw has a 10-32 thread. This is a UNC (Unified National Coarse) thread with 10-32 specification, widely used in North American applications.
What are EDPZ1008Z screws used for?
EDPZ1008Z Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for EDPZ1008Z?
The minimum order quantity (MOQ) for EDPZ1008Z is 10,000 pieces. The unit price is $0.039 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for EDPZ1008Z?
The lead time for EDPZ1008Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 10-32 thread?
The 10-32 thread is approximately equivalent to M5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does EDPZ1008Z use and why?
The EDPZ1008Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EDPZ1008Z (10-32, 1/2 inches), ensure your application requires this specific size.
What is the difference between EDPZ1008Z and similar parts?
EDPZ1008Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include EDPZ1008S (SUS304 Stainless Steel), EDPZ1008B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of EDPZ1008Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes EDPZ1008Z the preferred choice when these properties align with your application requirements.
