M2 x 9mm Pan Head Torx SEMS Screws with Spring and Flat Washer SUS304 Stainless Steel Inox
Why Choose EDPTM209S?

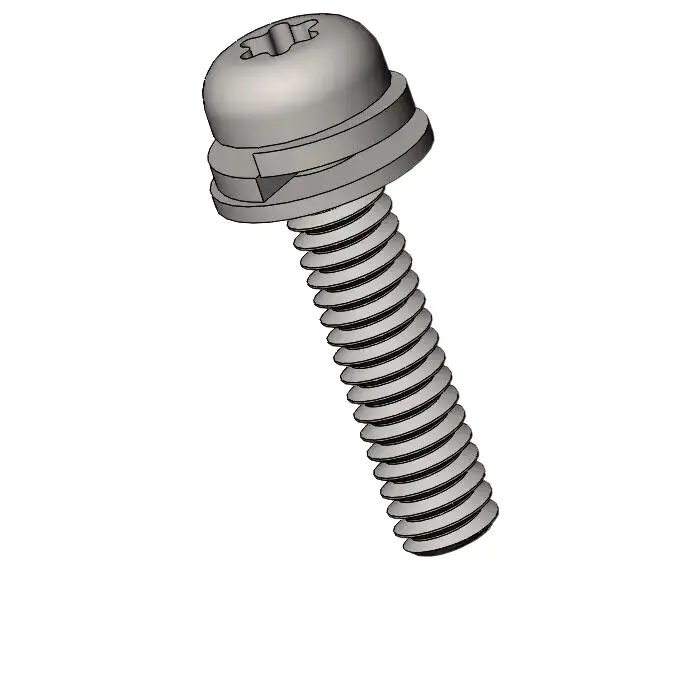

EDPTM209S is a M2 Pan Head head Torx drive screw with 9 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as EDPTM209Z (Blue Zinc Plated Steel), EDPTM209B (Black Zinc Plated Steel), the SUS304 Stainless Steel of EDPTM209S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each EDPTM209S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about EDPTM209S
What is EDPTM209S screw?
EDPTM209S is a M2 Pan Head head Torx drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 9 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of EDPTM209S?

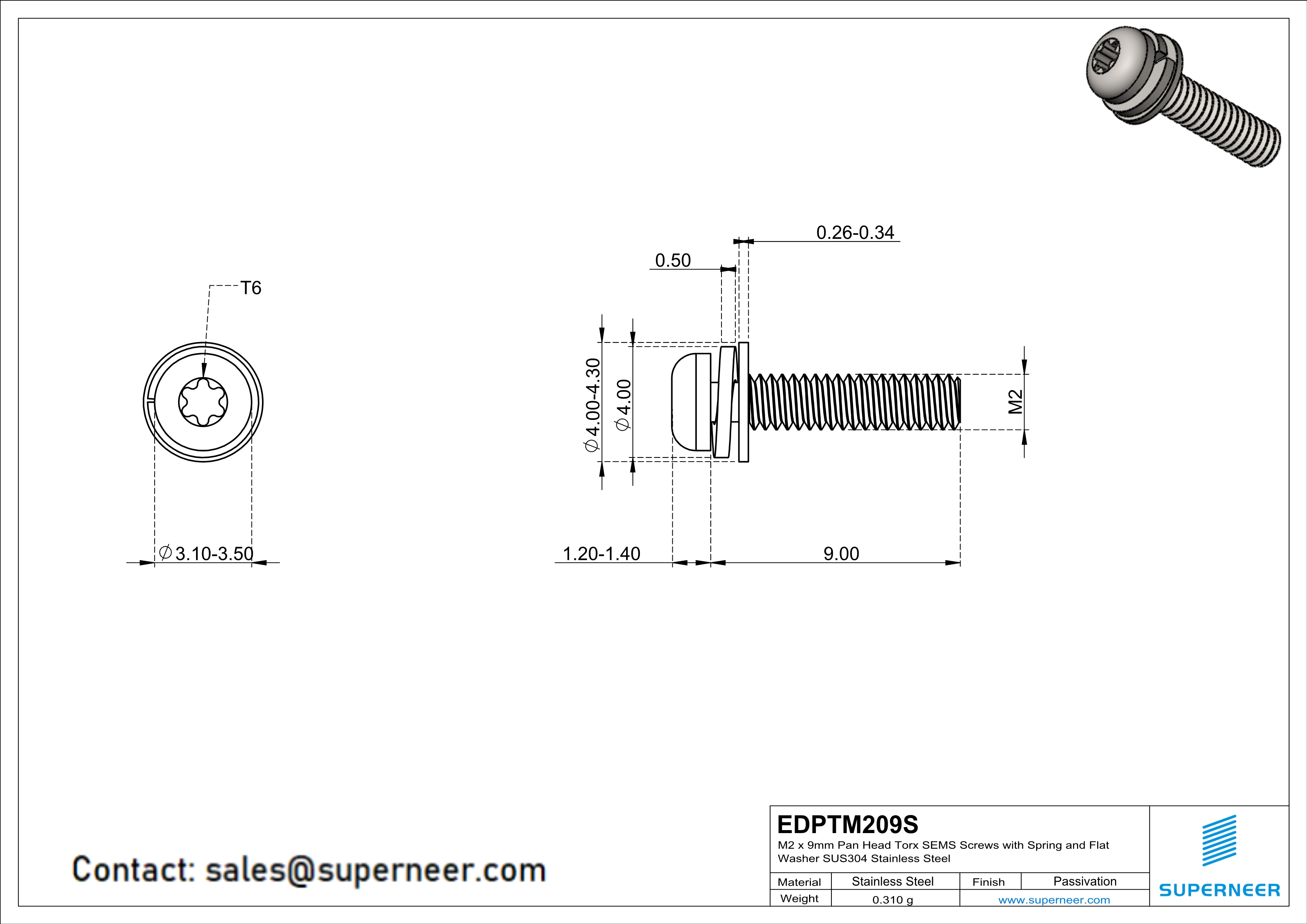

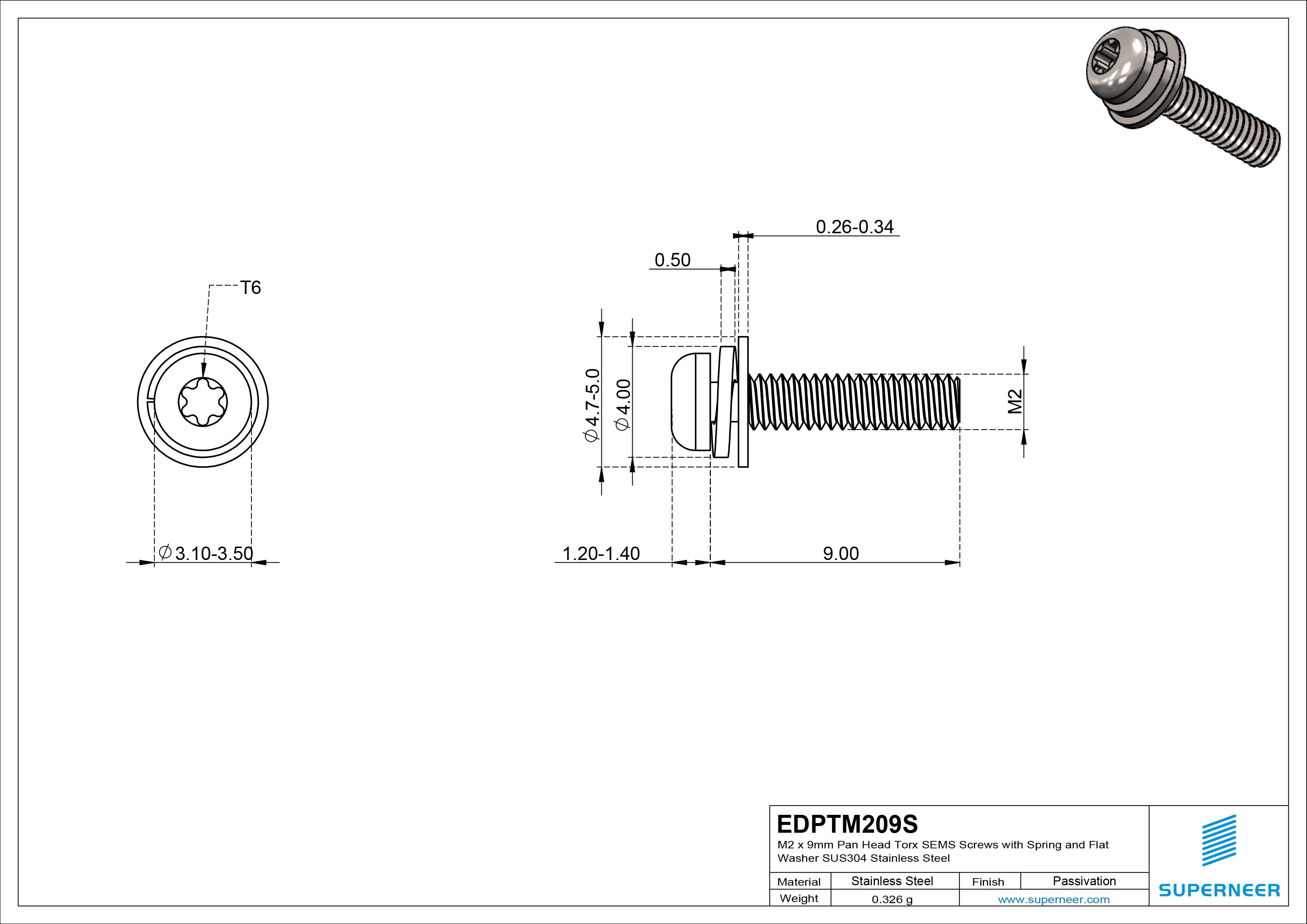

The EDPTM209S screw features thread size M2, length of 9 mm, head type Pan Head (head diameter 3.1-3.5 mm), drive type Torx (drive size T6), and is made of SUS304 Stainless Steel.
What material is the EDPTM209S screw made of?
The EDPTM209S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of EDPTM209S?
The EDPTM209S screw has a M2 thread. This is a metric thread with M2 specification, commonly used in international applications following ISO standards.
What are EDPTM209S screws used for?
EDPTM209S Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for EDPTM209S?
The minimum order quantity (MOQ) for EDPTM209S is 10,000 pieces. The unit price is $0.039 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for EDPTM209S?
The lead time for EDPTM209S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M2 thread?
The M2 thread is approximately equivalent to #3 (approx 2-56). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does EDPTM209S use and why?
The EDPTM209S uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EDPTM209S (M2, 9 mm), ensure your application requires this specific size.
What is the difference between EDPTM209S and similar parts?
EDPTM209S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include EDPTM209Z (Blue Zinc Plated Steel), EDPTM209B (Black Zinc Plated Steel). The SUS304 Stainless Steel of EDPTM209S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes EDPTM209S the preferred choice when these properties align with your application requirements.
