M2 x 8mm Pan Head Torx SEMS Screws with Spring and Flat Washer Steel Black
Why Choose EDPTM208B?

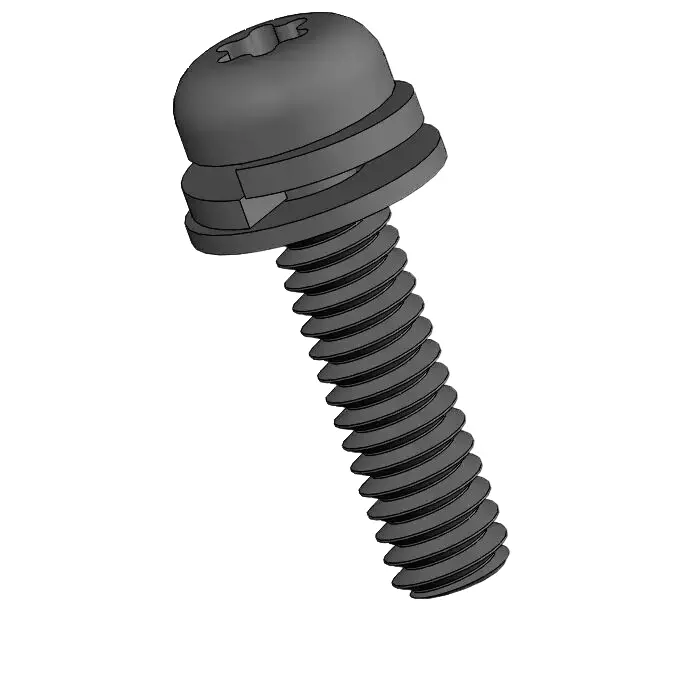

EDPTM208B is a M2 Pan Head head Torx drive screw with 8 mm length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as EDPTM208S (SUS304 Stainless Steel), EDPTM208Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of EDPTM208B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each EDPTM208B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about EDPTM208B
What is EDPTM208B screw?
EDPTM208B is a M2 Pan Head head Torx drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 8 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of EDPTM208B?

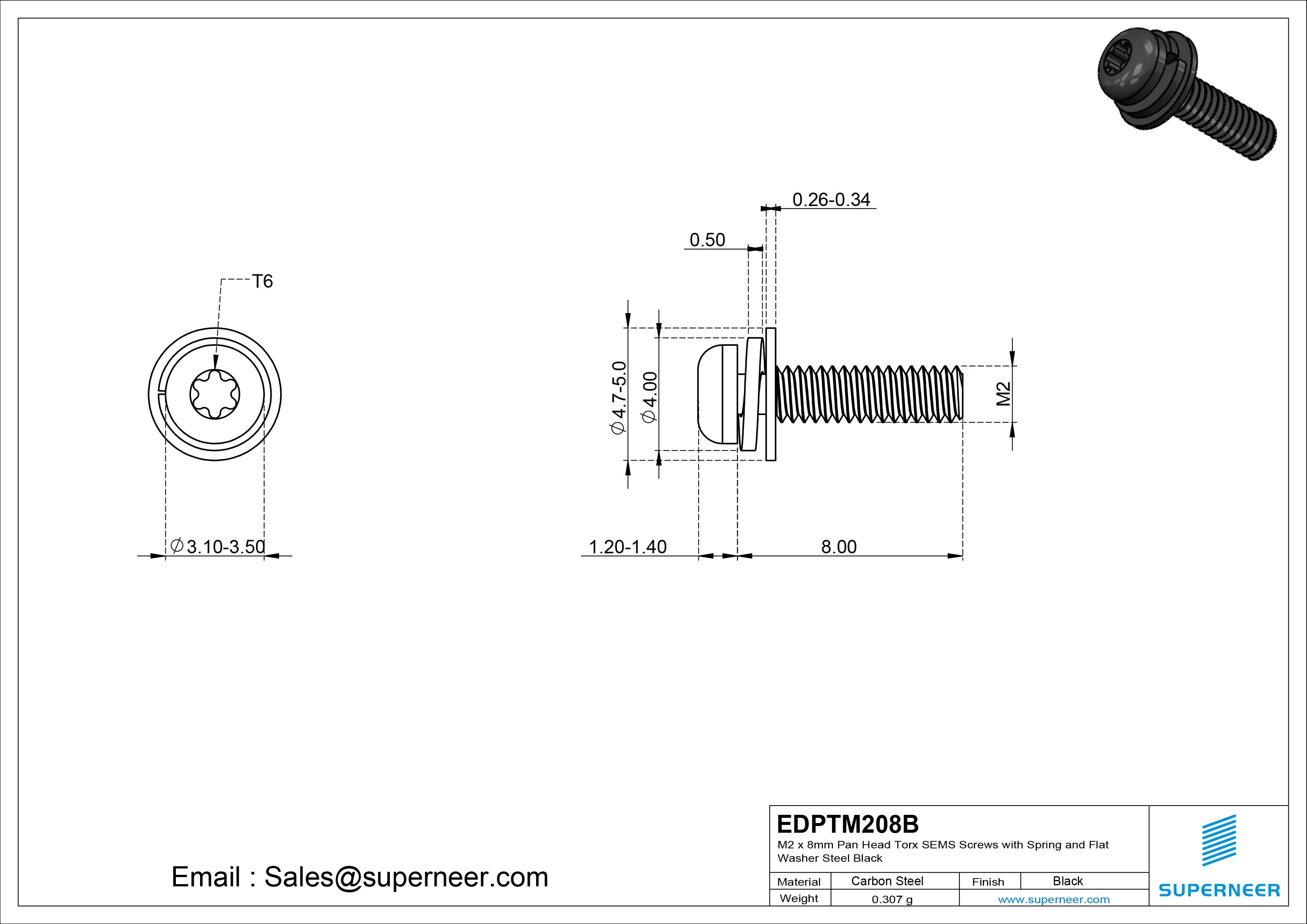

The EDPTM208B screw features thread size M2, length of 8 mm, head type Pan Head (head diameter 3.1-3.5 mm), drive type Torx (drive size T6), and is made of Black Zinc Plated Steel.
What material is the EDPTM208B screw made of?
The EDPTM208B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of EDPTM208B?
The EDPTM208B screw has a M2 thread. This is a metric thread with M2 specification, commonly used in international applications following ISO standards.
What are EDPTM208B screws used for?
EDPTM208B Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for EDPTM208B?
The minimum order quantity (MOQ) for EDPTM208B is 10,000 pieces. The unit price is $0.023 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for EDPTM208B?
The lead time for EDPTM208B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M2 thread?
The M2 thread is approximately equivalent to #3 (approx 2-56). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does EDPTM208B use and why?
The EDPTM208B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EDPTM208B (M2, 8 mm), ensure your application requires this specific size.
What is the difference between EDPTM208B and similar parts?
EDPTM208B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include EDPTM208S (SUS304 Stainless Steel), EDPTM208Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of EDPTM208B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes EDPTM208B the preferred choice when these properties align with your application requirements.
