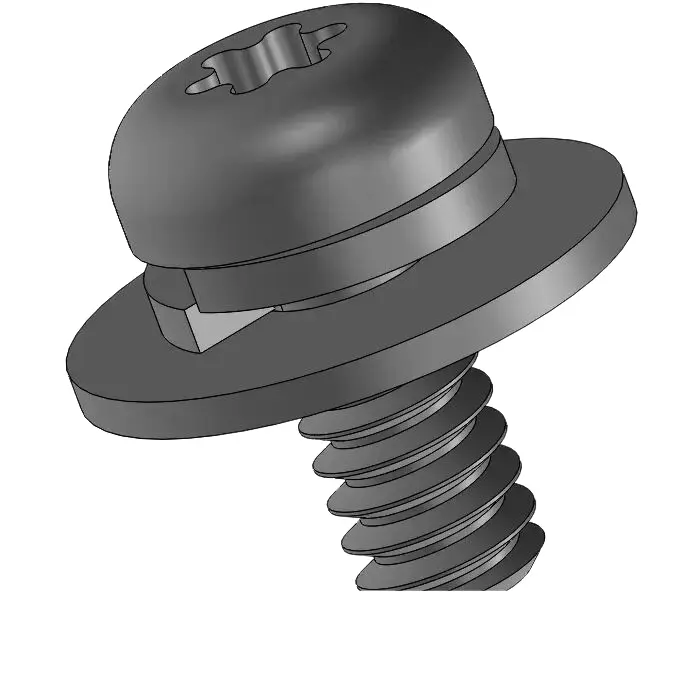

10-32 x 7/16" Pan Head Torx SEMS Screws with Spring and Flat Washer Steel Black
Why Choose EDPT1007B?
EDPT1007B is a 10-32 Pan Head head Torx drive screw with 3/4 inches length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as EDPT1007S (SUS304 Stainless Steel), EDPT1007Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of EDPT1007B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Pan Head head design ensures optimal load distribution across the mating surface, while the Torx drive allows efficient torque transmission during installation. Each EDPT1007B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about EDPT1007B
What is EDPT1007B screw?
EDPT1007B is a 10-32 Pan Head head Torx drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 3/4 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of EDPT1007B?

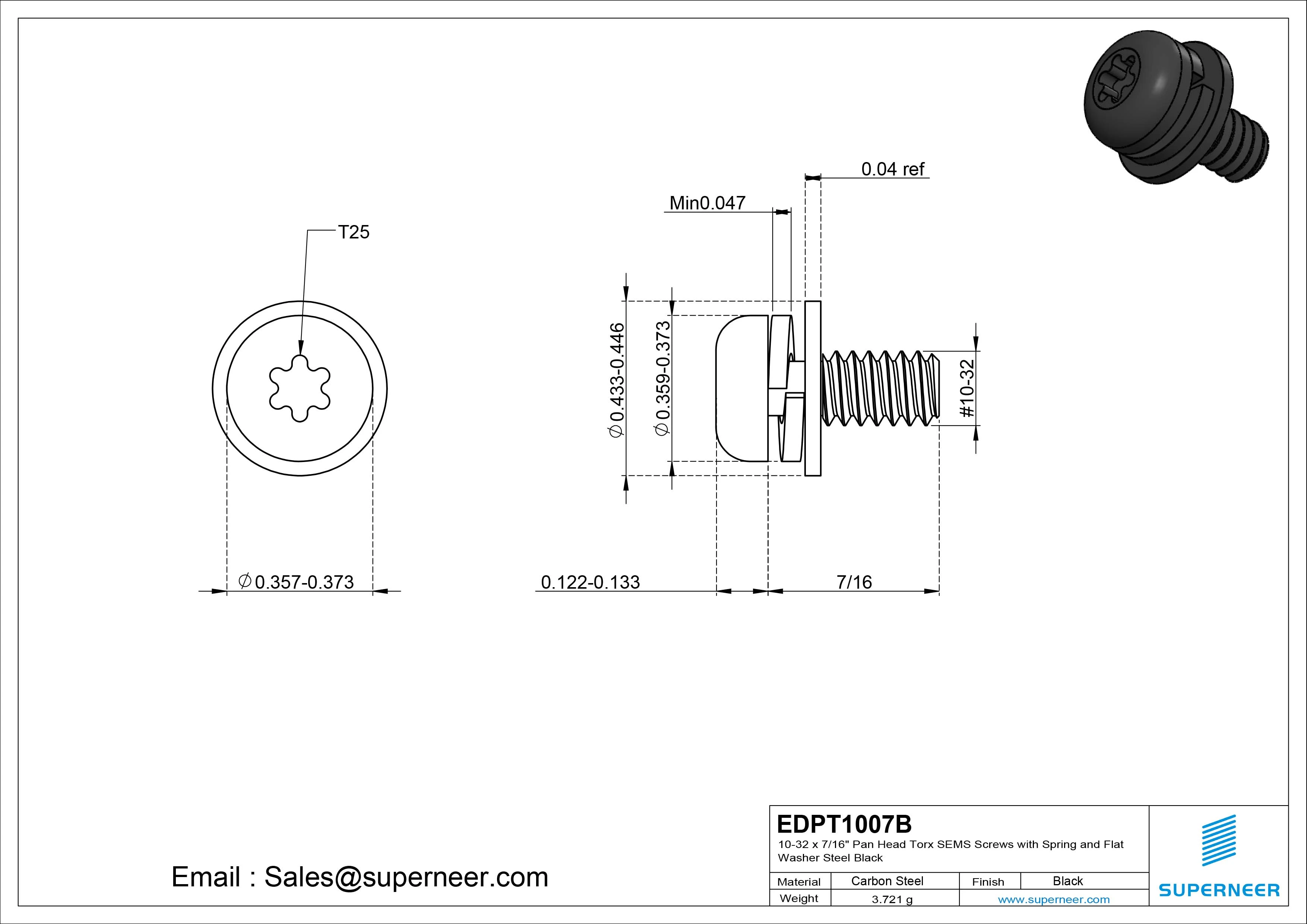

The EDPT1007B screw features thread size 10-32, length of 3/4 inches, head type Pan Head (head diameter 0.373-0.357” inches), drive type Torx (drive size T25), and is made of Black Zinc Plated Steel.
What material is the EDPT1007B screw made of?
The EDPT1007B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of EDPT1007B?
The EDPT1007B screw has a 10-32 thread. This is a UNC (Unified National Coarse) thread with 10-32 specification, widely used in North American applications.
What are EDPT1007B screws used for?
EDPT1007B Pan Head head Torx drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for EDPT1007B?
The minimum order quantity (MOQ) for EDPT1007B is 10,000 pieces. The unit price is $0.036 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for EDPT1007B?
The lead time for EDPT1007B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the metric equivalent of 10-32 thread?
The 10-32 thread is approximately equivalent to M5 (approx). When substituting inch screws with metric screws, always verify the actual diameter and pitch compatibility.
What head type does EDPT1007B use and why?
The EDPT1007B uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EDPT1007B (10-32, 3/4 inches), ensure your application requires this specific size.
What is the difference between EDPT1007B and similar parts?
EDPT1007B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include EDPT1007S (SUS304 Stainless Steel), EDPT1007Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of EDPT1007B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes EDPT1007B the preferred choice when these properties align with your application requirements.
