M5 x 8mm Pan Head Phillips SEMS Screws with Spring and Flat Washer Steel Blue Zinc Plated
Why Choose EDPPM508Z?
EDPPM508Z is a M5 Pan Head head Phillips drive screw with 8 mm length, featuring a Blue Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as EDPPM508S (SUS304 Stainless Steel), EDPPM508B (Black Zinc Plated Steel), the Blue Zinc Plated Steel of EDPPM508Z offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. The Pan Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each EDPPM508Z screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about EDPPM508Z
What is EDPPM508Z screw?
EDPPM508Z is a M5 Pan Head head Phillips drive screw made of Blue Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 8 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of EDPPM508Z?

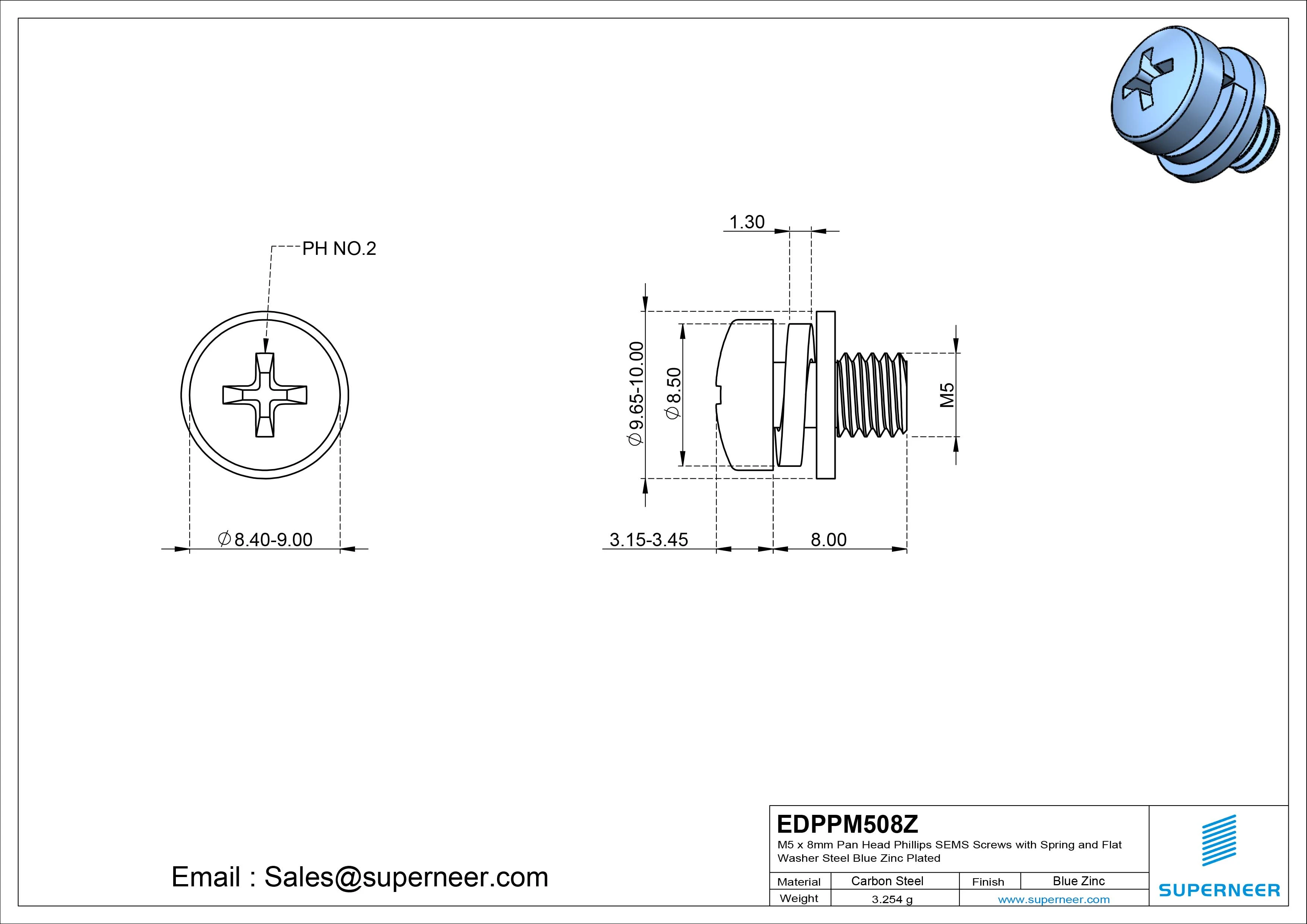

The EDPPM508Z screw features thread size M5, length of 8 mm, head type Pan Head (head diameter 8.4-9 mm), drive type Phillips (drive size PH No.2), and is made of Blue Zinc Plated Steel.
What material is the EDPPM508Z screw made of?
The EDPPM508Z screw is made of Blue Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Blue Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of EDPPM508Z?
The EDPPM508Z screw has a M5 thread. This is a metric thread with M5 specification, commonly used in international applications following ISO standards.
What are EDPPM508Z screws used for?
EDPPM508Z Pan Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for EDPPM508Z?
The minimum order quantity (MOQ) for EDPPM508Z is 10,000 pieces. The unit price is $0.024 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for EDPPM508Z?
The lead time for EDPPM508Z is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M5 thread?
The M5 thread is approximately equivalent to #10 (approx 10-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does EDPPM508Z use and why?
The EDPPM508Z uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EDPPM508Z (M5, 8 mm), ensure your application requires this specific size.
What is the difference between EDPPM508Z and similar parts?
EDPPM508Z uses Blue Zinc Plated Steel finish, while alternative variants in the same thread/length specification include EDPPM508S (SUS304 Stainless Steel), EDPPM508B (Black Zinc Plated Steel). The Blue Zinc Plated Steel of EDPPM508Z is specifically selected because it offers moderate corrosion resistance with a distinctive blue iridescent appearance, commonly used in automotive assembly, machinery, and general industrial fastening. This distinction makes EDPPM508Z the preferred choice when these properties align with your application requirements.
