M3.5 x 12mm Pan Head Phillips SEMS Screws with Spring and Flat Washer SUS304 Stainless Steel Inox
Why Choose EDPPM3512S?
EDPPM3512S is a M3.5 Pan Head head Phillips drive screw with 12 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as EDPPM3512Z (Blue Zinc Plated Steel), EDPPM3512B (Black Zinc Plated Steel), the SUS304 Stainless Steel of EDPPM3512S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Pan Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each EDPPM3512S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.
Payment Method: T/T & Paypal and other payment method
Shipment Method: Air Express , Air Freight, Sea Shippment
1. Order online directly, made payment via Paypal or bank transfer.
2. Superneer arrange production according to drawing,all demensions are within drawing specification.
3. Parts ready, ship to customer.
Frequently Asked Questions about EDPPM3512S
What is EDPPM3512S screw?
EDPPM3512S is a M3.5 Pan Head head Phillips drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 12 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.
What are the specifications of EDPPM3512S?

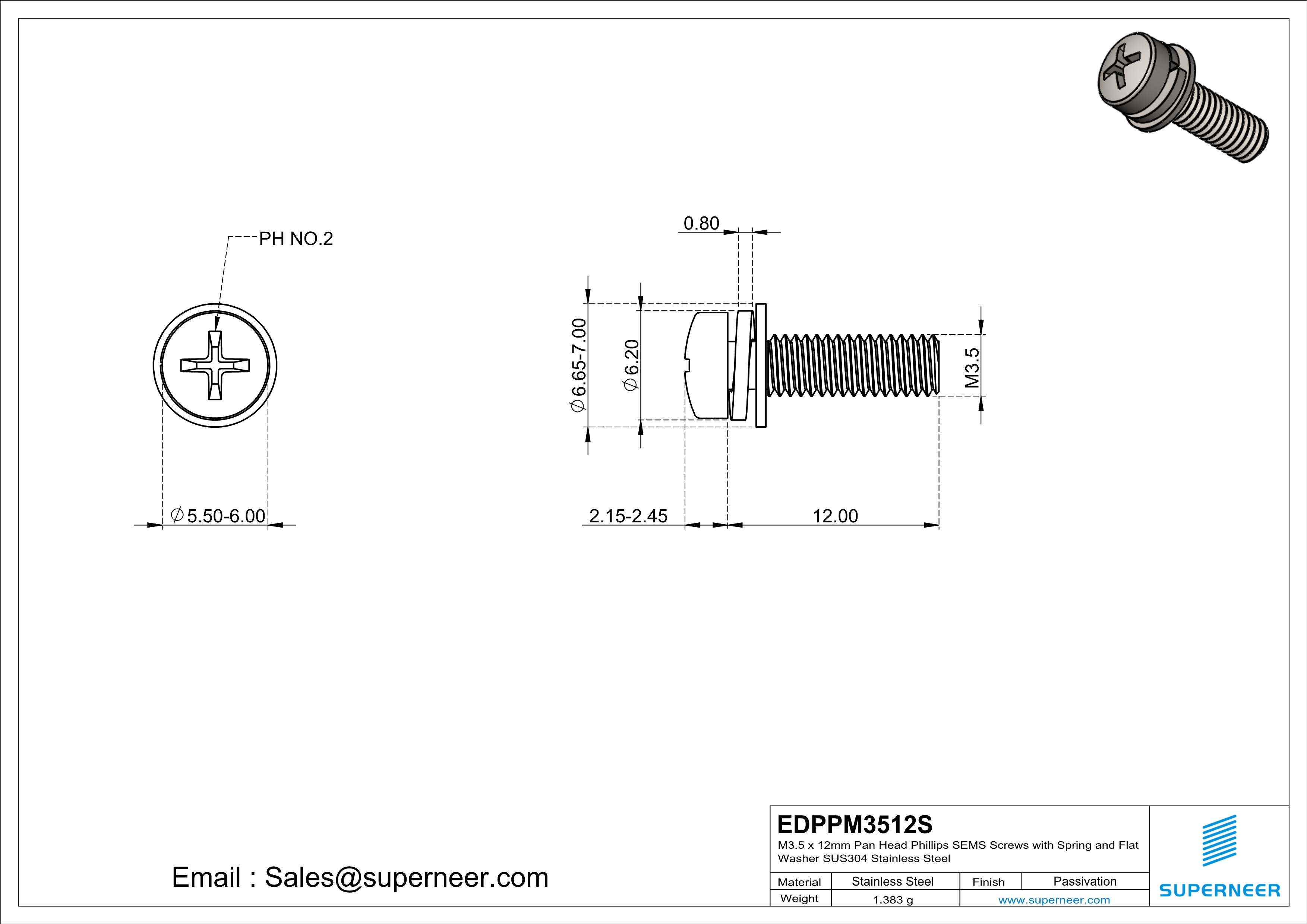

The EDPPM3512S screw features thread size M3.5, length of 12 mm, head type Pan Head (head diameter 6.64-7.00 mm), drive type Phillips (drive size PH No.2), and is made of SUS304 Stainless Steel.
What material is the EDPPM3512S screw made of?
The EDPPM3512S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.
What is the thread size of EDPPM3512S?
The EDPPM3512S screw has a M3.5 thread. This is a metric thread with M3.5 specification, commonly used in international applications following ISO standards.
What are EDPPM3512S screws used for?
EDPPM3512S Pan Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Pan Head head aesthetics is required.
What is the MOQ and price for EDPPM3512S?
The minimum order quantity (MOQ) for EDPPM3512S is 10,000 pieces. The unit price is $0.032 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact [email protected] for custom quotes.
What is the lead time and shipping for EDPPM3512S?
The lead time for EDPPM3512S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.
What is the inch equivalent of M3.5 thread?
The M3.5 thread is approximately equivalent to #8 (approx 8-32). When substituting metric screws with inch screws, always verify the actual diameter and pitch compatibility.
What head type does EDPPM3512S use and why?
The EDPPM3512S uses a Pan Head head type. Pan Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.
How to choose the right screw size for my application?
To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For EDPPM3512S (M3.5, 12 mm), ensure your application requires this specific size.
What is the difference between EDPPM3512S and similar parts?
EDPPM3512S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include EDPPM3512Z (Blue Zinc Plated Steel), EDPPM3512B (Black Zinc Plated Steel). The SUS304 Stainless Steel of EDPPM3512S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes EDPPM3512S the preferred choice when these properties align with your application requirements.
