4.5 x 12mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel

Screw
Screw
Part No. BPTC4512S rohs Rating:

material SUS304 Stainless Steel
Ship Date 2026-11-12
Head Truss Head
drive Combination Phillips-Slotted   PH No.2
Head Diameter 9-9.5 mm
Head Height 2.9-3.2 mm
Thread 4.5
Length 12 mm
Unit Price USD$ 0.078 /pcs
Unit Weight 1.636 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
4.5 x 7mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel 4.5 x 7mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
4.5 x 8mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel 4.5 x 8mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
4.5 x 9mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel 4.5 x 9mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
4.5 x 10mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel 4.5 x 10mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
4.5 x 12mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel 4.5 x 12mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
4.5 x 14mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel 4.5 x 14mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
Item Information

Why Choose BPTC4512S?

BPTC4512S is a 4.5 Truss Head head Combination Phillips-Slotted drive screw with 12 mm length, featuring a SUS304 Stainless Steel finish. Compared to alternative finishes in the same specification such as BPTC4512Z (Blue Zinc Plated Steel), BPTC4512B (Black Zinc Plated Steel), the SUS304 Stainless Steel of BPTC4512S offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. The Truss Head head design ensures optimal load distribution across the mating surface, while the Combination Phillips-Slotted drive allows efficient torque transmission during installation. Each BPTC4512S screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

4.5 x 12mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
BPTC4512S This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Truss Head with Combination Phillips-Slotted drive, 4.5 Thread and 12 mm Length .
material SUS304 Stainless Steel, Finsh is Rohs Clear which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
BUY BPTC4512S - 4.5 x 12mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail - 304 Stainless Steel for Metal Frame Assembly | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
4.5 x 12 mm
4.5 x 12 mm
BPTC4512S
SUS304 Stainless Steel
4.5 x 12 mm
4.5 x 12 mm
BPTC4512Z
Blue Zinc Plated Steel
4.5 x 12 mm
4.5 x 12 mm
BPTC4512B
Black Zinc Plated Steel

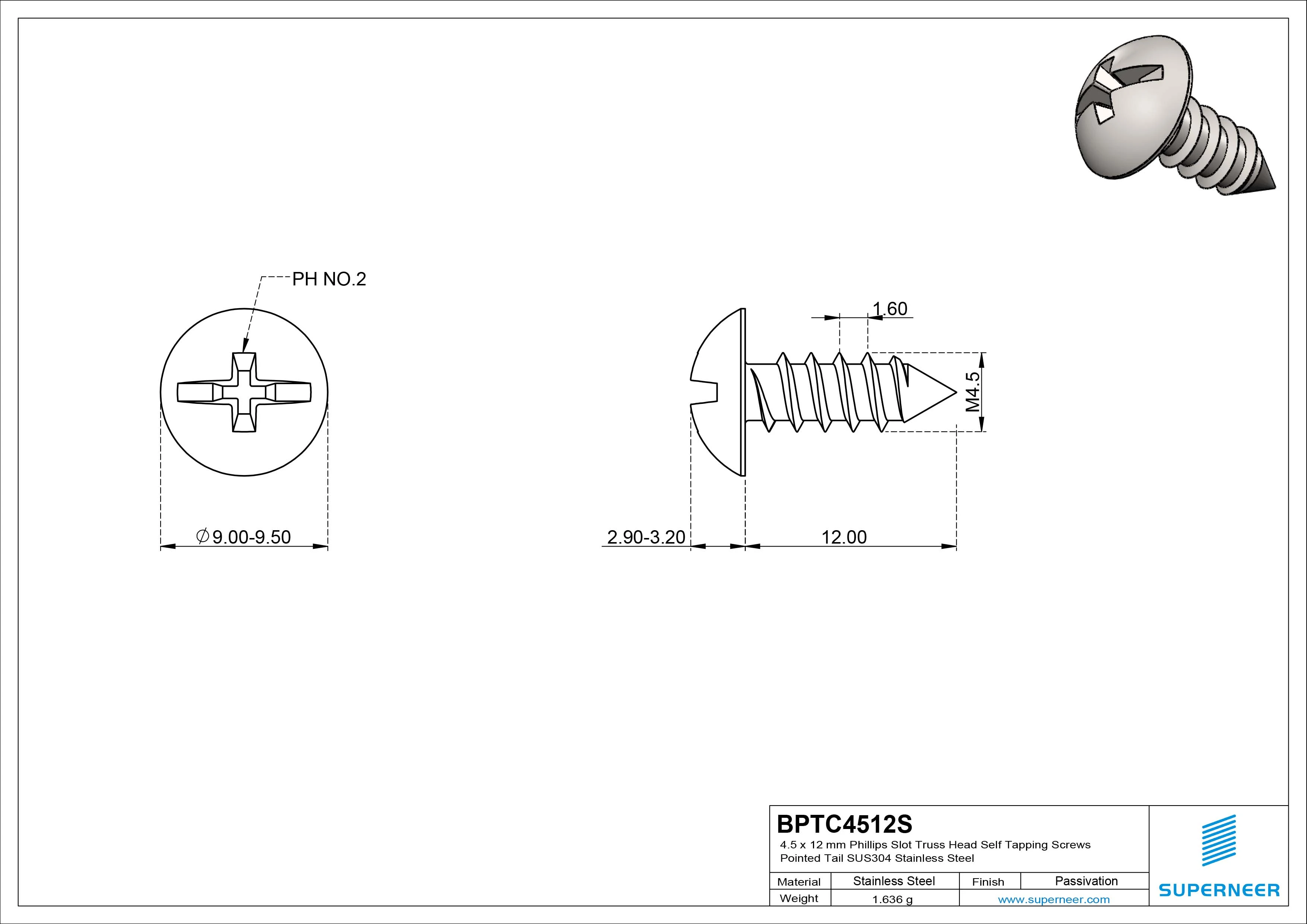

Item Drawing
4.5 x 12mm Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about BPTC4512S

What is BPTC4512S screw?

BPTC4512S is a 4.5 Truss Head head Combination Phillips-Slotted drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 12 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of BPTC4512S?

The BPTC4512S screw features thread size 4.5, length of 12 mm, head type Truss Head (head diameter 9-9.5 mm), drive type Combination Phillips-Slotted (drive size PH No.2), and is made of SUS304 Stainless Steel.

What material is the BPTC4512S screw made of?

The BPTC4512S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of BPTC4512S?

The BPTC4512S screw has a 4.5 thread. This is a UNC (Unified National Coarse) thread with 4.5 specification, widely used in North American applications.

What are BPTC4512S screws used for?

BPTC4512S Truss Head head Combination Phillips-Slotted drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.

What is the MOQ and price for BPTC4512S?

The minimum order quantity (MOQ) for BPTC4512S is 10,000 pieces. The unit price is $0.078 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact sales@superneer.com for custom quotes.

What is the lead time and shipping for BPTC4512S?

The lead time for BPTC4512S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What head type does BPTC4512S use and why?

The BPTC4512S uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For BPTC4512S (4.5, 12 mm), ensure your application requires this specific size.

What is the difference between BPTC4512S and similar parts?

BPTC4512S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include BPTC4512Z (Blue Zinc Plated Steel), BPTC4512B (Black Zinc Plated Steel). The SUS304 Stainless Steel of BPTC4512S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes BPTC4512S the preferred choice when these properties align with your application requirements.
