Home Self Tapping Screws Pointed Tail Truss Head Truss Head Phillips Slot #10-16 x 5/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel

#10-16 x 5/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel

Screw
Screw
Part No. BPTC1005S rohs Rating:

material SUS304 Stainless Steel
Ship Date 2026-11-11
Head Truss Head
drive Combination Phillips-Slotted   PH No.2
Head Diameter 0.425-0.448 inch
Head Height 0.103-0.118 inch
Thread 10-16
Length 5/16 inch
Unit Price USD$ 0.110 /pcs
Unit Weight 1.755 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
#10-16 x 1/4" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel #10-16 x 1/4" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
#10-16 x 5/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel #10-16 x 5/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
#10-16 x 3/8" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel #10-16 x 3/8" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
#10-16 x 7/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel #10-16 x 7/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
#10-16 x 1/2" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel #10-16 x 1/2" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
Item Information
#10-16 x 5/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Truss Head with Combination Phillips-Slotted drive, 10-16 Thread and 5/16 inch Length .
material SUS304 Stainless Steel, Finsh is Rohs Clear which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
BUY Sus304 stainless steel truss head combination phillips-slotted screw with 10-16 and 5/16 length manufactured by Superneer,this #10-16 x 5/16" phillips slot truss head self tapping screws pointed tail sus304 stainless steel features 0.425-0.448 head diameter and 0.103-0.118 head height.Suitable for fastening materials.Available in clear finish today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
10-16 x 5/16 inch
10-16 x 5/16 inch
BPTC1005S
SUS304 Stainless Steel
10-16 x 5/16" inch
10-16 x 5/16" inch
BPTC1005Z
Blue Zinc Plated Steel
10-16 x 5/16" inch
10-16 x 5/16" inch
BPTC1005B
Black Zinc Plated Steel

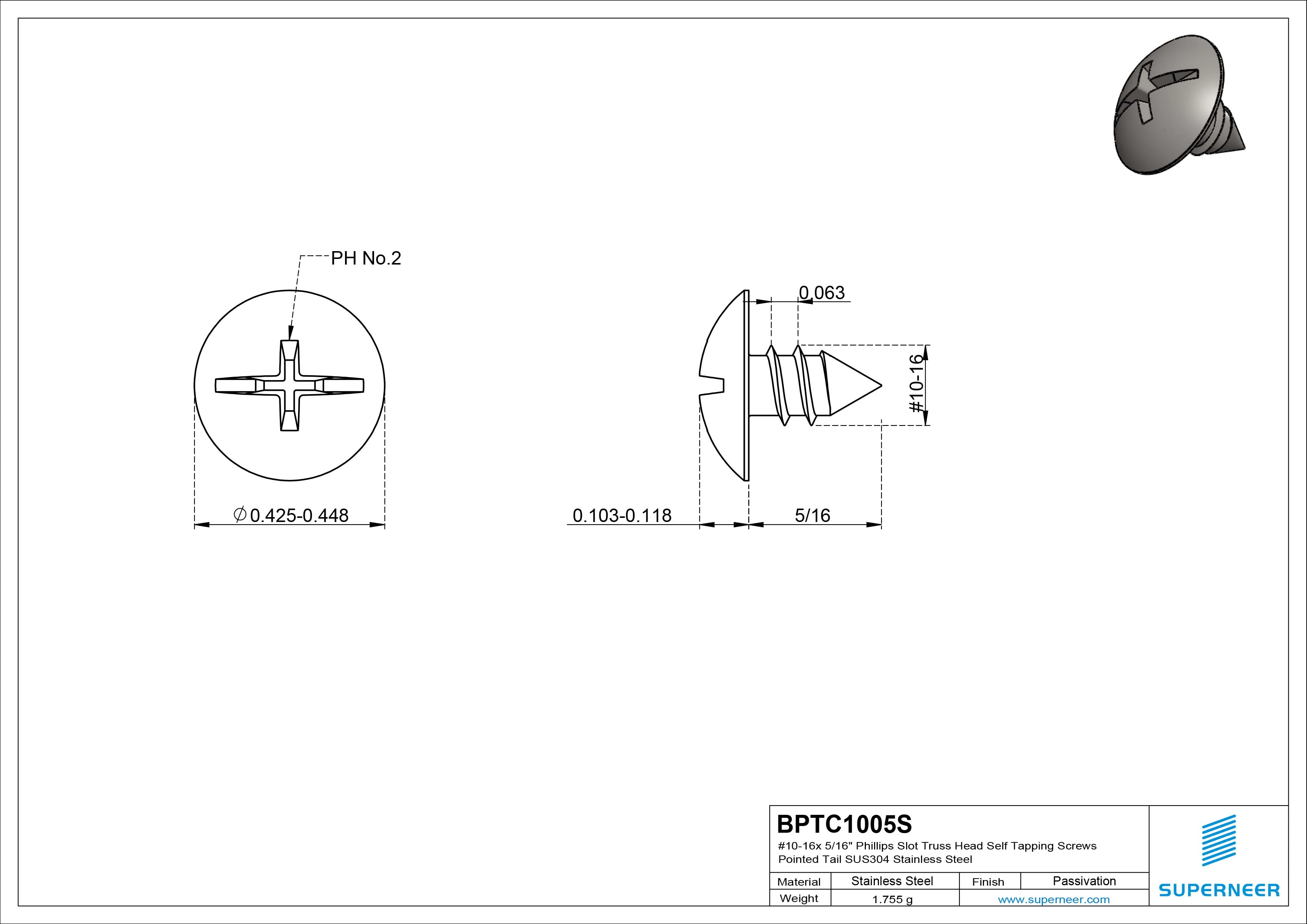

Item Drawing
#10-16 x 5/16" Phillips Slot Truss Head Self Tapping Screws Pointed Tail SUS304 Stainless Steel
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about BPTC1005S

What is BPTC1005S screw?

BPTC1005S is a 10-16 Truss Head head Combination Phillips-Slotted drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 5/16 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of BPTC1005S?

The BPTC1005S screw features thread size 10-16, length of 5/16 inches, head type Truss Head (head diameter 0.425-0.448 inches), drive type Combination Phillips-Slotted (drive size PH No.2), and is made of SUS304 Stainless Steel.

What material is the BPTC1005S screw made of?

The BPTC1005S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of BPTC1005S?

The BPTC1005S screw has a 10-16 thread. This is a UNC (Unified National Coarse) thread with 10-16 specification, widely used in North American applications.

What are BPTC1005S screws used for?

BPTC1005S Truss Head head Combination Phillips-Slotted drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.

What is the MOQ and price for BPTC1005S?

The minimum order quantity (MOQ) for BPTC1005S is 10,000 pieces. The unit price is $0.110 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact sales@superneer.com for custom quotes.

What is the lead time and shipping for BPTC1005S?

The lead time for BPTC1005S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What head type does BPTC1005S use and why?

The BPTC1005S uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For BPTC1005S (10-16, 5/16 inches), ensure your application requires this specific size.
