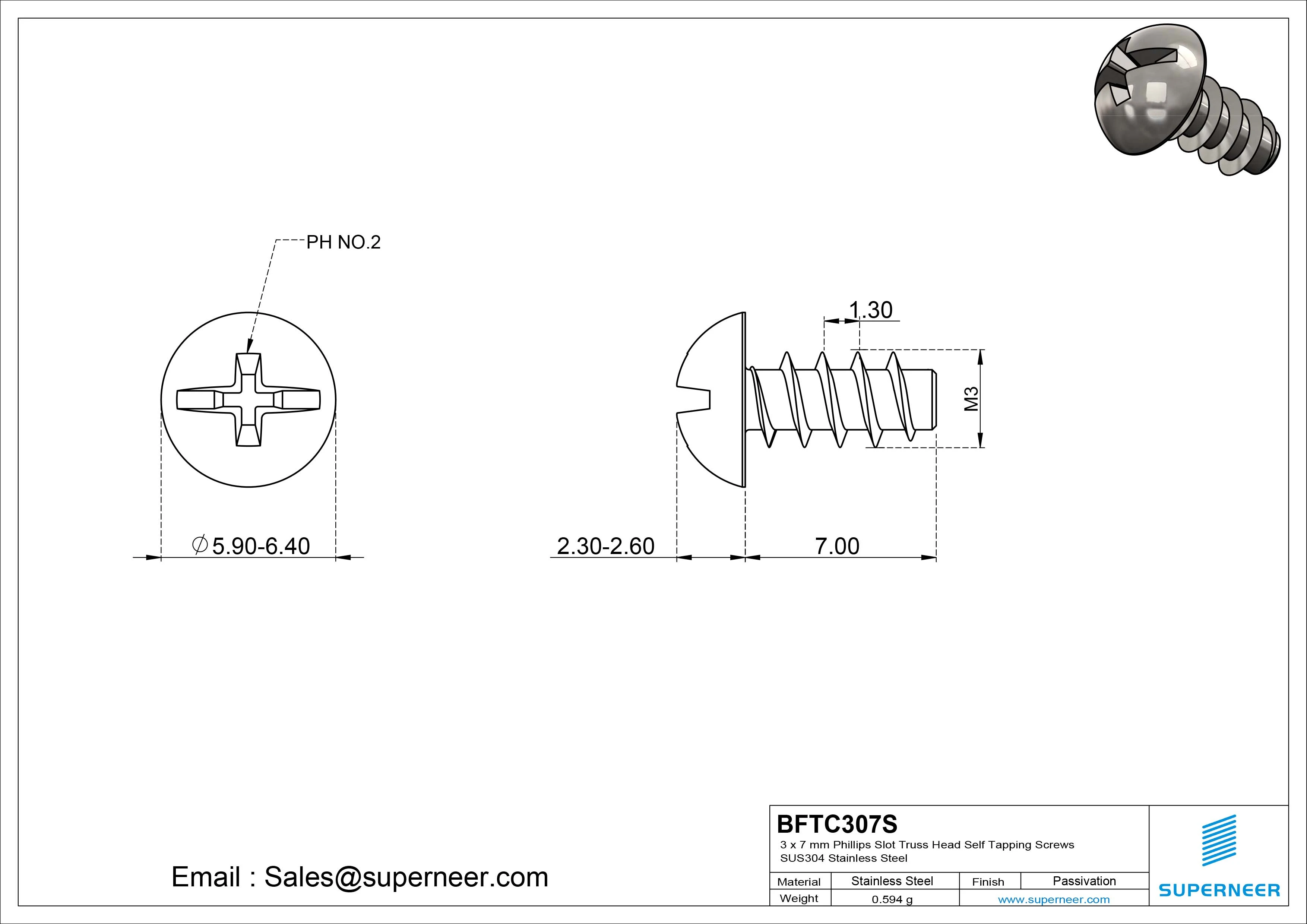

3 x 7mm Phillips Slot Truss Head Self Tapping Screws SUS304 Stainless Steel

BFTC307S is a 3 Truss Head head Phil-Slot Combination drive screw made of SUS304 Stainless Steel, manufactured by Superneer Limited. It has a length of 7 mm and is commonly used in electronics, watches, precision instruments, and 3D printers.

The BFTC307S screw features thread size 3, length of 7 mm, head type Truss Head (head diameter 5.9-6.4 mm), drive type Phil-Slot Combination (drive size PH No.2), and is made of SUS304 Stainless Steel.

The BFTC307S screw is made of SUS304 Stainless Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. SUS304 Stainless Steel offers excellent corrosion resistance and mechanical strength.

The BFTC307S screw has a 3 thread. This is a UNC (Unified National Coarse) thread with 3 specification, widely used in North American applications.

BFTC307S Truss Head head Phil-Slot Combination drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Truss Head head aesthetics is required.

The minimum order quantity (MOQ) for BFTC307S is 10,000 pieces. The unit price is $0.040 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact sales@superneer.com for custom quotes.

The lead time for BFTC307S is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

The BFTC307S uses a Truss Head head type. Truss Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For BFTC307S (3, 7 mm), ensure your application requires this specific size.

BFTC307S uses SUS304 Stainless Steel finish, while alternative variants in the same thread/length specification include BFTC307Z (Blue Zinc Plated Steel), BFTC307B (Black Zinc Plated Steel). The SUS304 Stainless Steel of BFTC307S is specifically selected because it offers superior corrosion resistance for outdoor, marine, and humid environments, excellent hygiene properties for food and medical equipment, and good mechanical strength at low cost relative to exotic alloys. This distinction makes BFTC307S the preferred choice when these properties align with your application requirements.
