Home Self Tapping Screws Flat End Flat Head Flat Phillips #10-16 x 5/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated

#10-16 x 5/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated

Screw
Screw
Part No. BFFP1005B rohs Rating:

material Black Zinc Plated Steel
Ship Date 2026-11-13
Head Flat Head
drive phillips   PH No.2
Head Diameter 0.333-0.362 inch
Head Height 0.098-0.116 inch
Thread 10-16
Length 5/16 inch
Unit Price USD$ 0.026 /pcs
Unit Weight 1.210 g
Quantity pcs
Amount USD$ Total Amount USD$
Amount USD$ Total Amount USD$

Related Parts
#10-16 x 1/4" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated #10-16 x 1/4" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated
#10-16 x 5/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated #10-16 x 5/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated
#10-16 x 3/8" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated #10-16 x 3/8" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated
#10-16 x 7/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated #10-16 x 7/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated
#10-16 x 1/2" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated #10-16 x 1/2" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated
Item Information

Why Choose BFFP1005B?

BFFP1005B is a 10-16 Flat Head head Phillips drive screw with 5/16 inches length, featuring a Black Zinc Plated Steel finish. Compared to alternative finishes in the same specification such as BFFP1005S (SUS304 Stainless Steel), BFFP1005Z (Blue Zinc Plated Steel), the Black Zinc Plated Steel of BFFP1005B offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. The Flat Head head design ensures optimal load distribution across the mating surface, while the Phillips drive allows efficient torque transmission during installation. Each BFFP1005B screw is manufactured to industry standards, RoHS compliant, and supplied with material test reports (MTR) for full quality traceability.

#10-16 x 5/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated
BFFP1005B This part demension will be same as the drawing indicate below, length tolerance will be ±0.5 .
It is Flat Head with Phillips drive, 10-16 Thread and 5/16 inch Length .
material Black Zinc Plated Steel, Finsh is Rohs Black Zinc Plated which has good function of anti-corrosion .
On website, you can choose use your shipping account which shippcost is 0, or you can use our DHL/UPS account to ship which will have ship cost indicate.
Payment terms: Payment advance, On website, you can choose pay via paypal or pay via bank transfer. when bank transfer , you can send your bank slip to us via order process or send it to our email:sales@superneer.com. when payment made, We will soon make production and update process for you via email.
BUY BFFP1005B - #10-16 x 5/16 Phillips Flat Head Self Tapping Screws - Black Zinc Steel for Metal Frame Assembly | Superneer today,high quality product and best service will be provided by superneer.Each order will be made shippment on time.
Different Finish :
10-16 x 5/16 inch
10-16 x 5/16 inch
BFFP1005S
SUS304 Stainless Steel
10-16 x 5/16 inch
10-16 x 5/16 inch
BFFP1005Z
Blue Zinc Plated Steel
10-16 x 5/16 inch
10-16 x 5/16 inch
BFFP1005B
Black Zinc Plated Steel

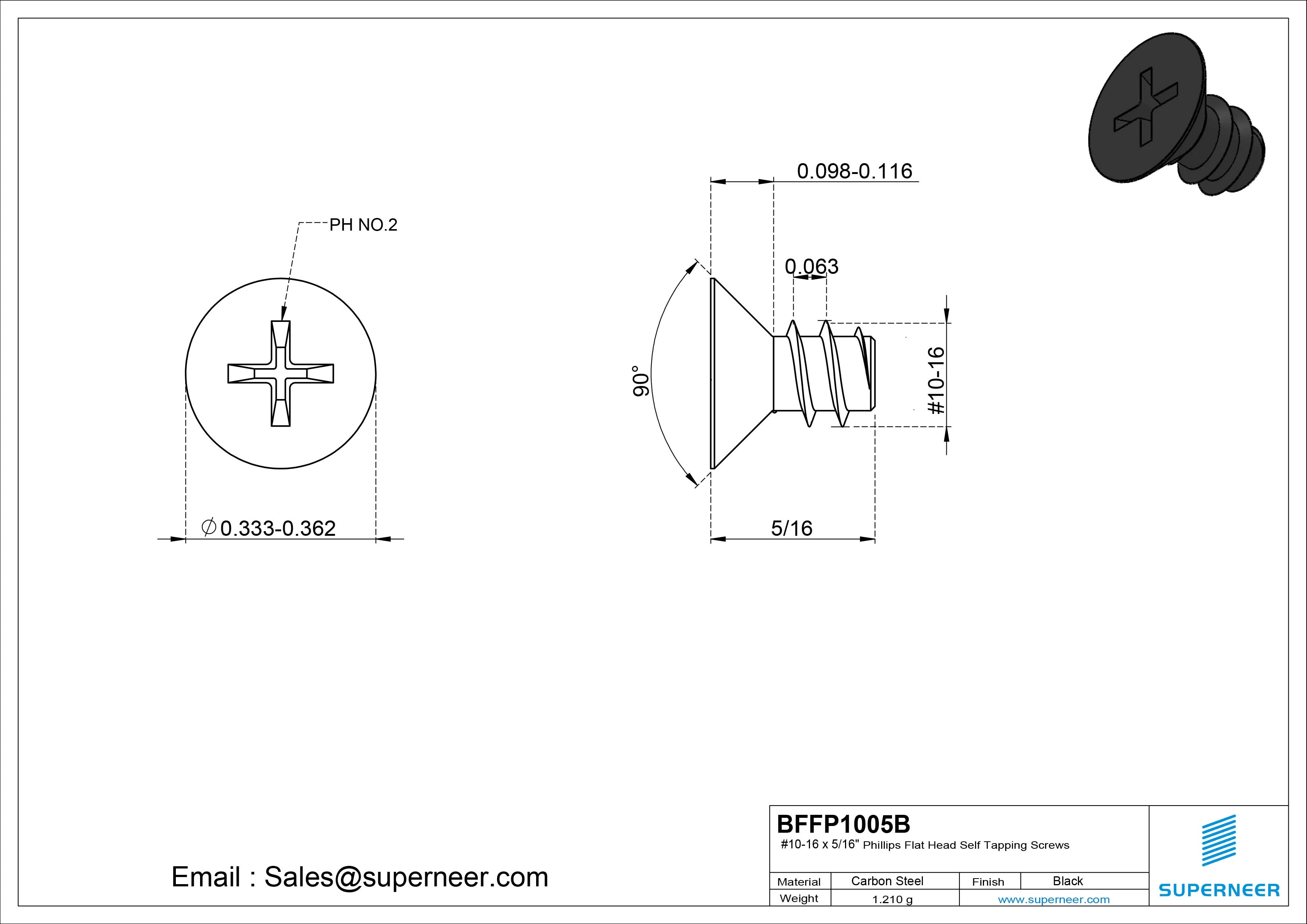

Item Drawing
#10-16 x 5/16" Phillips Flat Head Self Tapping Screws Steel Black Zinc Plated
Other Parts
2-56 x 3/16 screw 2-56 x 3/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 5/16 screw 2-56 x 5/16" Pan Head Torx Machine Screw SUS304 Stainless Steel
2-56 x 3/4 screw 2-56 x 3/4" Pan Head Torx T7 Machine Screw SUS304 Stainless Steel
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw SUS304 Stainless Steel
2-56 x 7/16 screw 2-56 x 7/16" Flat Head 82° Torx T7 Machine Screw SUS304 Stainless Steel
M2.5 x 12 screw M2.5 x 12 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated
M3 x 6 screw M3 x 6 mm Pan Head Torx Machine Screw Steel Blue Zinc Plated ISO 14583
undercut screw M3 x 6 mm Flat Head Undercut Slotted Machine Screw SUS304 Stainless Steel
M3 x 8 pan torx screw M3 x 8 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 10 pan torx screw M3 x 10 mm Pan Head Torx Machine Screw Steel Black ISO 14583
M3 x 6 screw M3 x 6 mm Flat Head 82° Torx Machine Screw Steel Black
M3 x 5 mm flat screw M3 x 5 mm Flat Head 120° Phillips Machine Screw Steel Black
2-56 x 13/32 screw 2-56 x 13/32" Standoff Screw SUS303 Stainless Steel Hex Male Female Spacers
M3 × 6mm screw M3 × 6mm Indented Hex Washer Serrattion Phillips Thread Forming Screws for Metal Steel Black
M2.5 x 6mm screw M2.5 x 6mm Socket Cup Point Set Screws Steel Black DIN916
M2 x 2.5mm screw M2 x 2.5mm Flat Head Torx Machine Screw SUS304 Stainless Steel
M3 x 8mm screw M3 x 8mm Thumb Screw Knurled Head (Head Diameter 8mm,Head Height 8mm) SUS304 Stainless Steel
M3 X 3mm screw M3 X 3mm 12.9 Grade Steel Black Flat Socket Screw
M4 x 10mm screw M4 x 10mm Socket Set Screw Cone Point SUS304 Stainless Steel DIN914 Nylon Patch
M3 x 4mm screw M3 x 4mm Torx Flat Head Machine Screw Carbon Steel Black Oxide
standoff 2-56 x 13/32" Standoff Screw with 7/32" Outer Thread Length SUS303 Stainless Steel Hex Male Female Spacers
self sealing screw M2 x 8 mm Self Sealing Screw Pan Torx Head SUS304 Stainless Steel Waterproof Screws
SEMS Screw M3 x 10 mm Button Head Socket SEMS Screw with Internal Tooth Washer Steel Black Oxide
Payment & Trasportation 5-10 days

Payment Method: T/T & Paypal and other payment method

Shipment Method: Air Express , Air Freight, Sea Shippment

How to Order

1. Order online directly, made payment via Paypal or bank transfer.

2. Superneer arrange production according to drawing,all demensions are within drawing specification.

3. Parts ready, ship to customer.

Frequently Asked Questions about BFFP1005B

What is BFFP1005B screw?

BFFP1005B is a 10-16 Flat Head head Phillips drive screw made of Black Zinc Plated Steel, manufactured by Superneer Limited. It has a length of 5/16 inches and is commonly used in electronics, watches, precision instruments, and 3D printers.

What are the specifications of BFFP1005B?

The BFFP1005B screw features thread size 10-16, length of 5/16 inches, head type Flat Head (head diameter 0.333-0.362 inches), drive type Phillips (drive size PH No.2), and is made of Black Zinc Plated Steel.

What material is the BFFP1005B screw made of?

The BFFP1005B screw is made of Black Zinc Plated Steel. Superneer provides material test reports (MTR) and RoHS compliance certificates for all products. Black Zinc Plated Steel offers excellent corrosion resistance and mechanical strength.

What is the thread size of BFFP1005B?

The BFFP1005B screw has a 10-16 thread. This is a UNC (Unified National Coarse) thread with 10-16 specification, widely used in North American applications.

What are BFFP1005B screws used for?

BFFP1005B Flat Head head Phillips drive screws are used in electronics assembly, PCB mounting, precision instruments, watches, 3D printers, optical devices, medical equipment, and consumer products where reliable fastening with Flat Head head aesthetics is required.

What is the MOQ and price for BFFP1005B?

The minimum order quantity (MOQ) for BFFP1005B is 10,000 pieces. The unit price is $0.026 USD for MOQ quantity. Larger quantities receive discounted pricing. Contact sales@superneer.com for custom quotes.

What is the lead time and shipping for BFFP1005B?

The lead time for BFFP1005B is 15-25 days for production. Shipping to USA takes 5-15 days via sea freight, with shipping cost starting from $50 USD. Air freight is available for urgent orders. DDP and FOB terms are both available.

What head type does BFFP1005B use and why?

The BFFP1005B uses a Flat Head head type. Flat Head head provides a specific head design optimized for its intended application. This head type is selected based on the specific application requirements for load distribution, aesthetics, and accessibility.

How to choose the right screw size for my application?

To choose the right screw: 1) Determine the required thread size based on the tapped hole or nut; 2) Select the appropriate length based on the material thickness; 3) Choose the head type based on clearance and aesthetics; 4) Select the drive type based on torque requirements; 5) Choose the material based on environmental conditions. For BFFP1005B (10-16, 5/16 inches), ensure your application requires this specific size.

What is the difference between BFFP1005B and similar parts?

BFFP1005B uses Black Zinc Plated Steel finish, while alternative variants in the same thread/length specification include BFFP1005S (SUS304 Stainless Steel), BFFP1005Z (Blue Zinc Plated Steel). The Black Zinc Plated Steel of BFFP1005B is specifically selected because it offers a black decorative finish combined with good corrosion resistance, ideal for consumer electronics, automotive interiors, and applications where both appearance and rust prevention matter. This distinction makes BFFP1005B the preferred choice when these properties align with your application requirements.
